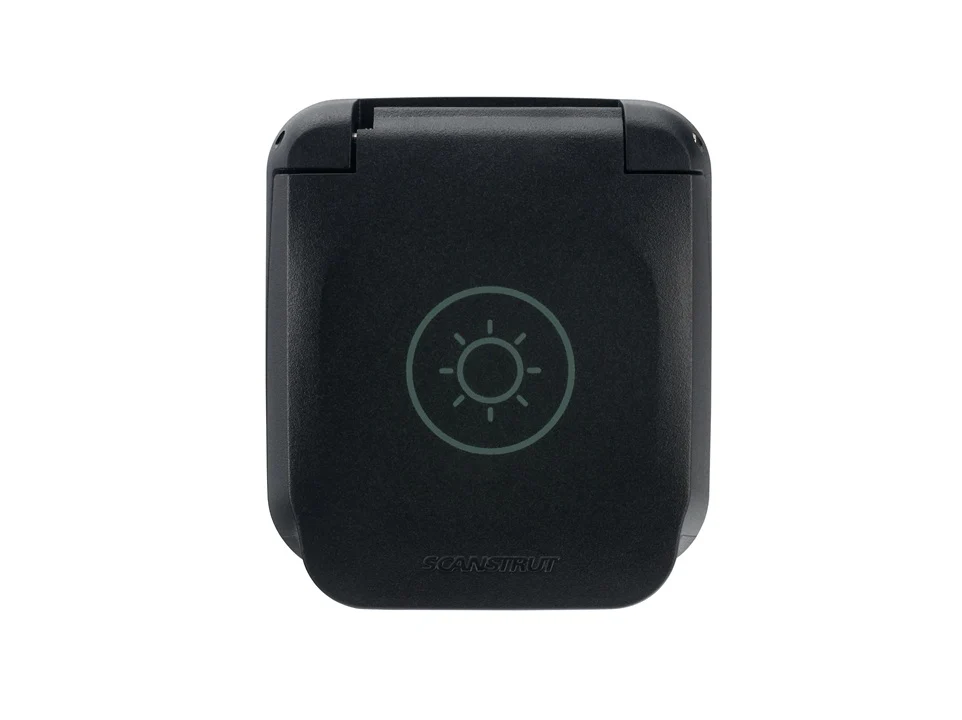

Scanstrut Ventura XT60 Solar Connection

The Scanstrut Ventura Series delivers compact, durable utility sockets for overlanders, vanlifers, and explorers.

Scanstrut Ventura Series sockets featuring a sleek, low-profile design, IP68 & IP69K waterproof rating, and spring-loaded, click-shut lids.

A high-quality alternative to cheap Caravan/Motorhome accessories bolted onto the outside of your vehicle. Scanstrut Ventura sockets keeps your connections safe and your adventures powered, wherever the road takes you.

Stay powered and adventure-ready, choose the Scanstrut Ventura Series for uncompromising outdoor connectivity.

Ventura XT60 Solar Connection Key Features
•    Connector Type Amass XT60EW-M Male Waterproof Type
•    IP68, IP69K Waterproof (with lid closed)
•    Premium click-to-close design
•    Easy install
•    Standard 25mm (1.00”) Holesaw Installation
•    Built-in gasket for a watertight seal 
•    Cover Sprung to Fully Open 180°
•    Marine-Grade 316 Stainless Steel Components
•    90° Holding Bump-Feature
•    UV Resistant

Electrical Information
Connection Type   Amass XT60EW-M Male Waterproof Type
Compatible Connectors • XT60W-F Female Waterproof Type (IP65 in use) • XT60-F Standard Female Type
Connector Max Current • 30A Continuous• 60A Instantaneous
Connector Max Voltage Rated 500V DC
Max Power Delivery (12V Input) 360W
Max Power Delivery (24V Input) 720W
Max Power Delivery (48V Input) 1440W
Cable Size    4mm² / 12AWG
Cable Length    150mm (6”) Tinned Copper Wire
Cable Bend Radius (4xD)    18mm (0.71”)
Waterproof Rating    IP68, IP69K Front only when lid closed
Certification    CE, ROHS
