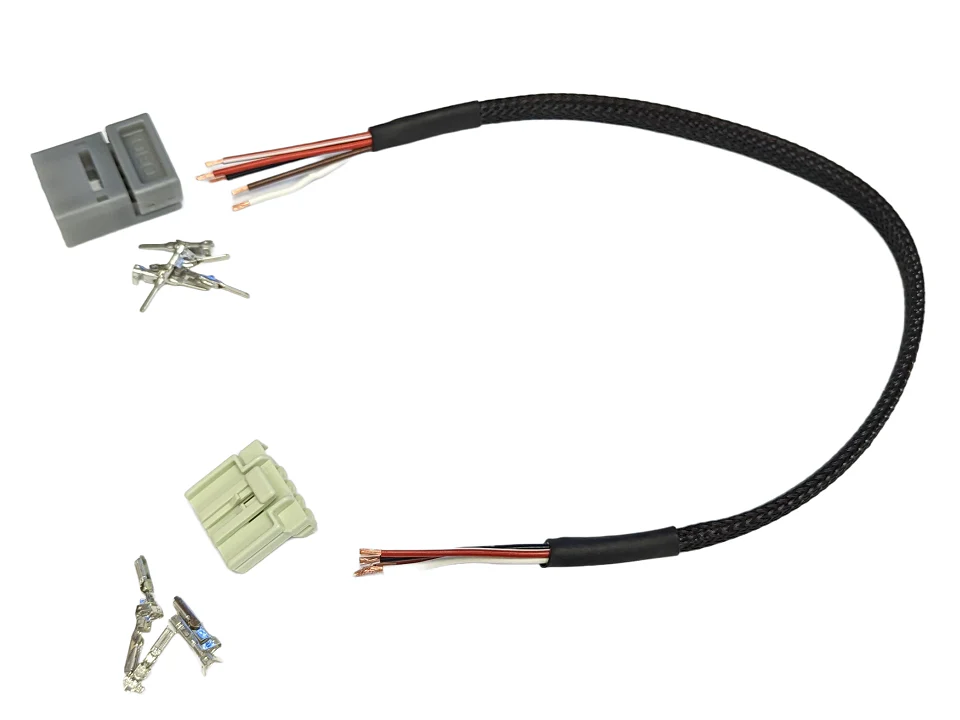

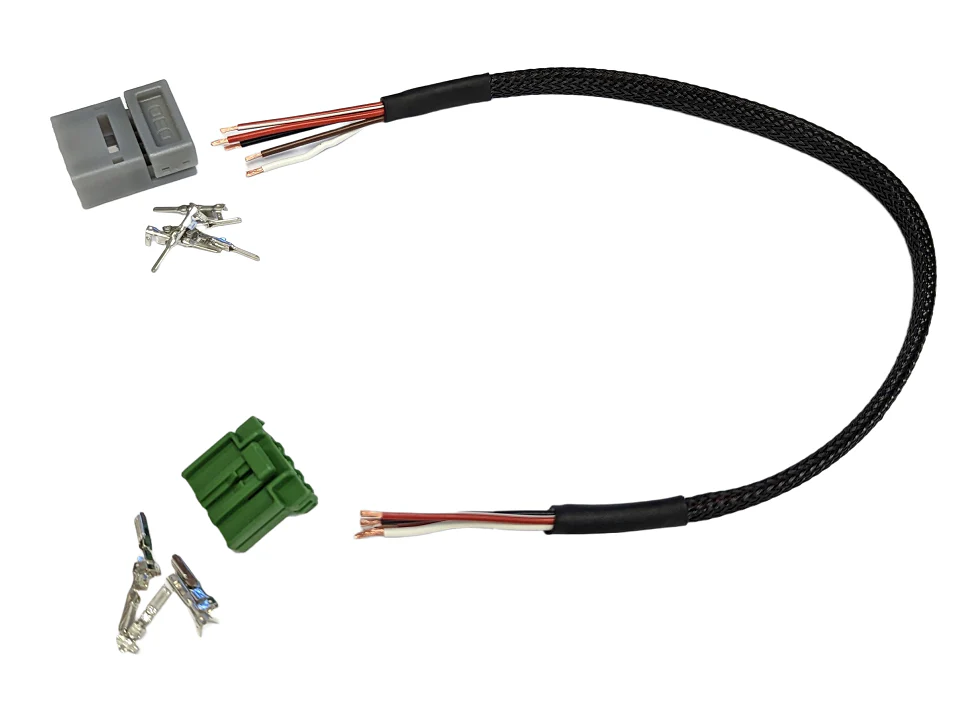

MUD Genuine Switch Extension Loom

A useful 400mm extension loom for when you need to extend the wiring of the dashboard switches found in the Td5/Tdci Defender. Provides a neat plug & play method of extending the factory switch wiring.

Select the colour coded female connector that corresponds with the coloured factory switch connector you wish to extend.

White connector

Tdci/Puma Rear Wiper (YUG000350LNF),  Tdci/Puma Heated Front Screen (YUG000460LNF)

Td5 Rear Wiper (YUG000350LNF), Td5 Heated Front Screen (YUG000460LNF)

Green Connector

Tdci/Puma Air Conditioning (JTB500010), Td5 Heated Seat- Left (YUG102430)

Blue Connector

Tdci/Puma Heated rear screen  (YUG102430), Tdci/Puma Rear wash (YUE000070LNF)

Td5 Heated rear screen (YUG000470LNF), Td5 Rear wash (YUE000070LNF)

Black Connector

Tdci/Puma Front fog light (YUG000540LNF), Tdci/Puma Rear fog light (YUG000530LNF)

Tdci/Puma Heated seat (YUF500150LNF), Tdci/Puma Dynamic Stability Control (LR055956)

Td5 Heated Seat RH (YUG102440), Td5 Front fog light (YUG000540LNF), Td5 Rear fog (YUG000530LNF)
